SERVICES

High-precision machining of difficult-to-cut materials

We are capable of finishing so-called “difficult-to-cut” metals—such as SUS316L, Hastelloy, and 3D additively manufactured materials—to a final surface roughness of Rz 1.0 or less.

Example materials: Austenitic stainless steels, titanium alloys, nickel-based heat-resistant alloys (Inconel, Hastelloy, etc.), high-hardness steels (quenched steels, tool steels), ceramics, CFRP (carbon fiber reinforced plastics).

Ultra-precision micro hole machining

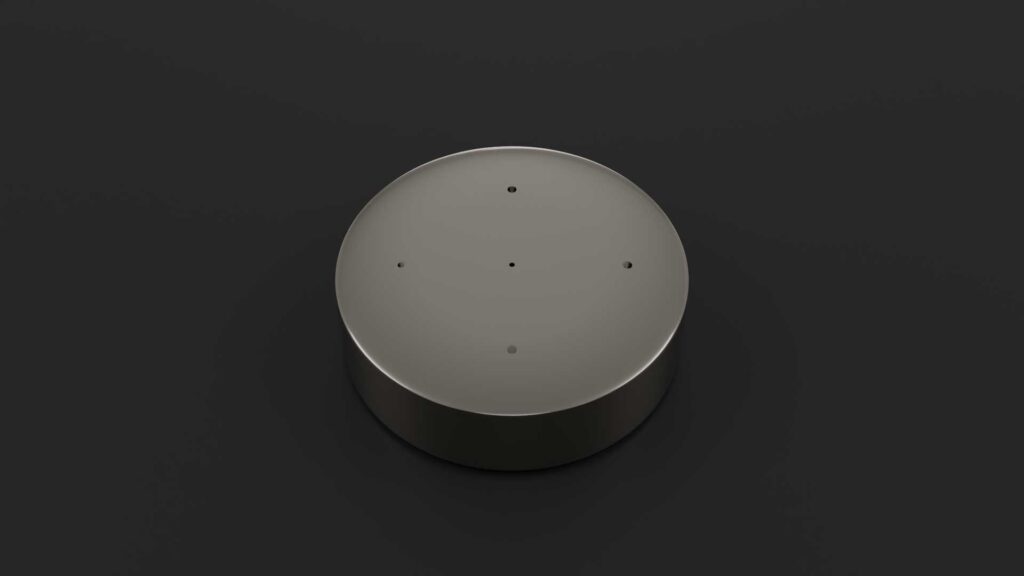

We have the technology to precisely machine micro-holes of φ0.1 mm or smaller to depths exceeding 10 times their diameter, while achieving beautifully smooth inner surfaces.

Small hole machining（Φ0.1～Φ3.0)

Material
Φ0.1～Φ0.5
Φ0.6～Φ1.29
Φ1.3～Φ1.59
Φ1.6～Φ2.69
Φ2.7～Φ3.0
SUS316L
Depth 20D
Depth 25mm
Depth 35mm
Depth 40mm
Depth 90mm

Burnishing　VCR/UPG/C-seal/W-seal

Ultrasonic Cleaning / Ultrapure Water Precision Cleaning

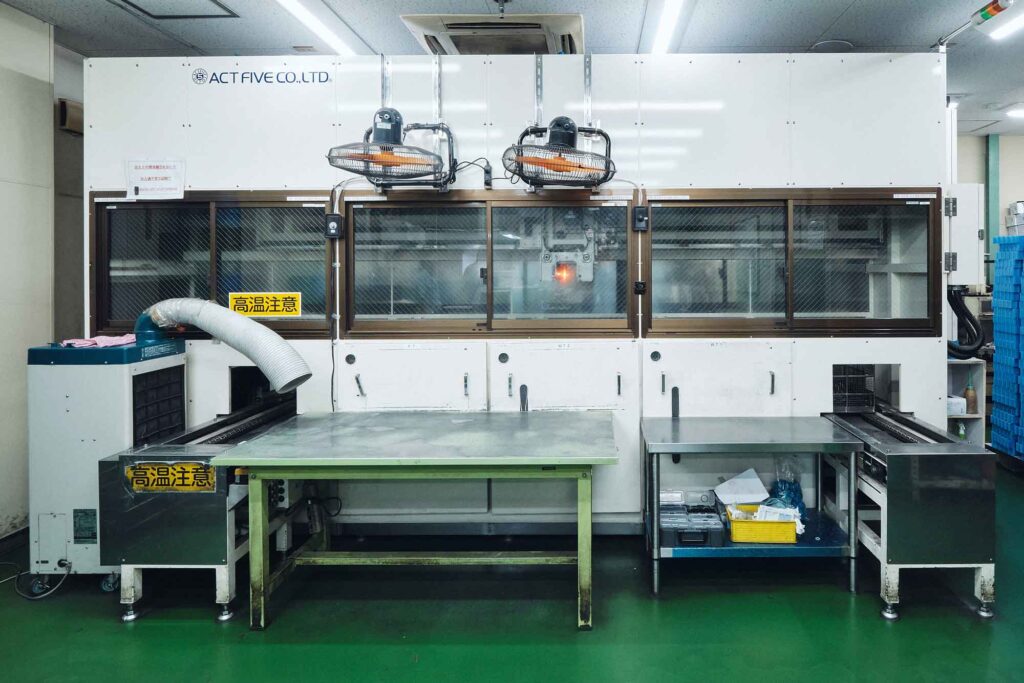

We operate in-house automated ultrasonic cleaning equipment, enabling integrated process control for degreasing, quality inspection, and ultrapure water precision cleaning.

Ultrapure Water Precision Cleaning・・・De-ionized water production system/Resistivity of 16 MΩ·cm or higher

Surface Cleanliness Results

  1. Oil residue amount
  2. TOC (Total Organic Carbon) management
  3. Particle count management
  4. Silicon dioxide amount management
  5. Bacterial count management
  6. Residual ion concentration (ng/cm²)
    F- ≦ 0.47, Cl- ≦ 9.12, NO2- ≦ 0.34, Br- ≦ 0.59, NO3- ≦ 18.52, SO42- ≦ 23.92, PO43- ≦ 38.62,Li+ ≦ 0.08, Na+ ≦ 8.97, NH4+ ≦ 7.33, K+ ≦ 6.83
    Mg2+ ≦ 2.42, Ca2+ ≦ 5.98

Polishing

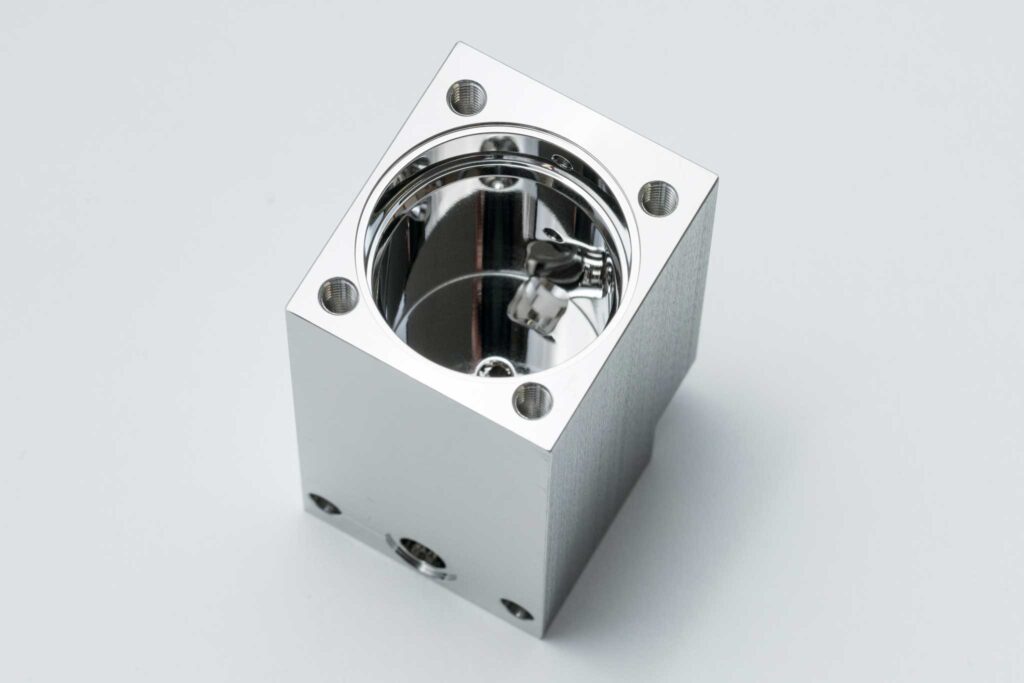

Our polishing process employs customized fixtures and specialized compounds, enabling us to effectively handle a wide range of shapes. With rigorous process management, we consistently meet tight tolerances for even the most demanding specifications. In addition, we provide advanced lapping and electropolishing services.

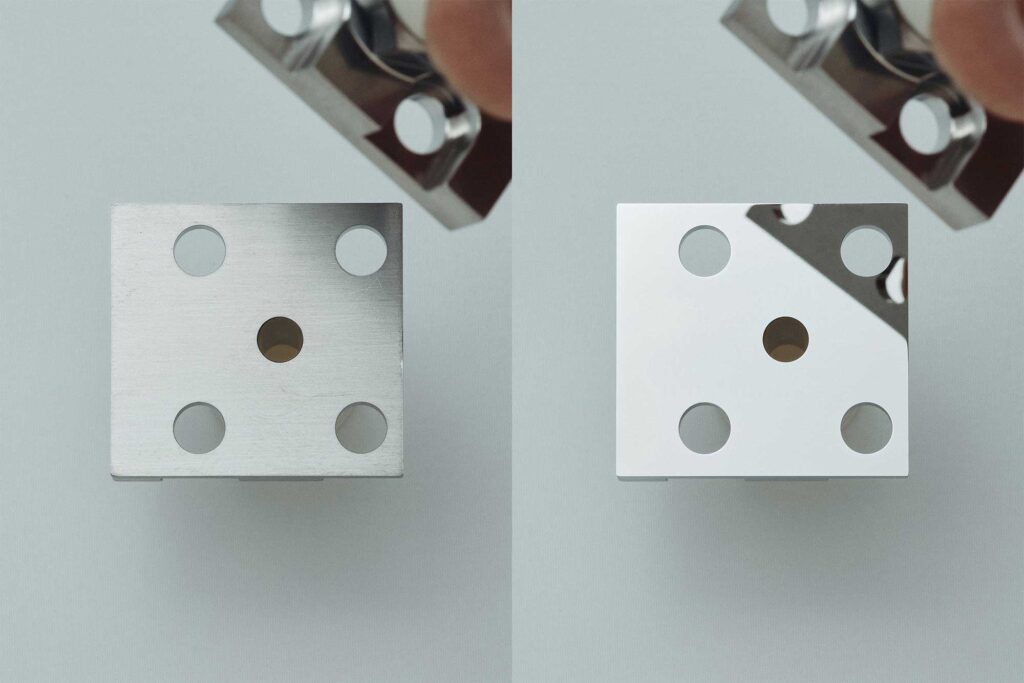

Before Polishing Ra0.15μm →　After Polishing Ra0.04μm

Passivation

We perform passivation treatment in compliance with SEMI F60 and ASTM standards. We also provide surface treatments (anodizing, plating, coatings, laser marking), a variety of heat treatments (nitriding, vacuum, sulfurizing), and surface enhancement treatments (hardening, lubrication, seizure resistance, scuff resistance, wear resistance, corrosion resistance) to meet diverse customer requirements.

Passivation Coating:

  1. Surface contamination (C ≦ 30.0%, S ≦ 1.0%, P ≦ 2.0%, Si ≦ 1.5%, N ≦ 2.0%)
  2. Cr/Fe ≧ 2, CrO/FeO ≧3
  3. Cr/Fe ≧ 1 at a depth of 10Å, oxide coating thickness ≧ 20Å

Welding

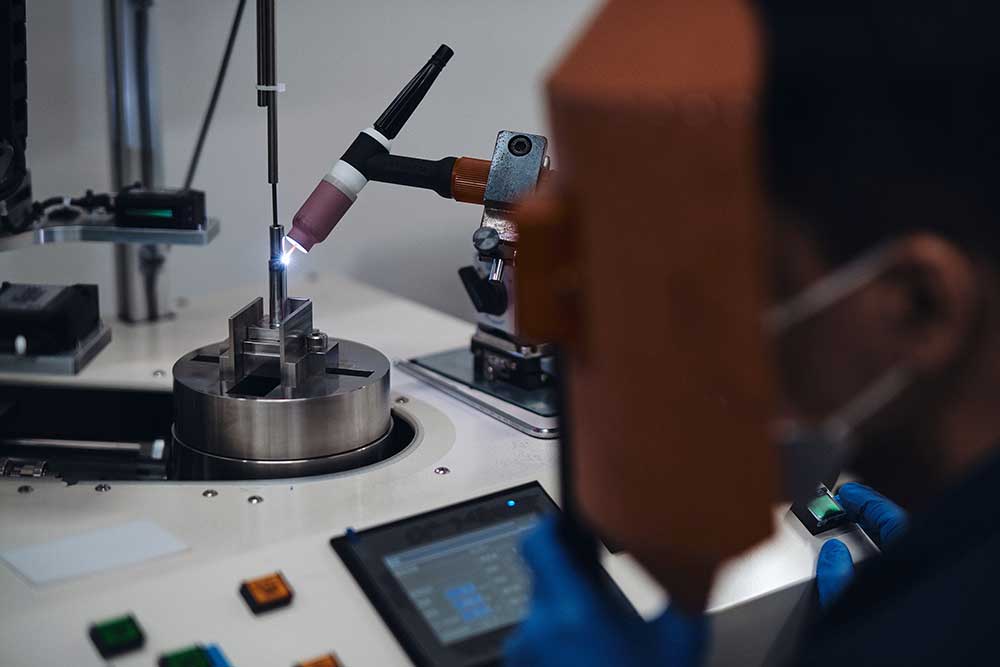

We perform TIG welding, laser welding, fiber laser welding, and more—enabling precision welding of thin-walled tubes. By controlling temperature and humidity and utilizing our in-house developed TIG welding machines, we achieve higher accuracy and productivity. Within our clean room, we also operate an automated robotic welding line.

Ex：Controlled weld penetration depth with a tolerance of ±0.3mm

Ex：Semi-automated welding using robots inside a clean booth.

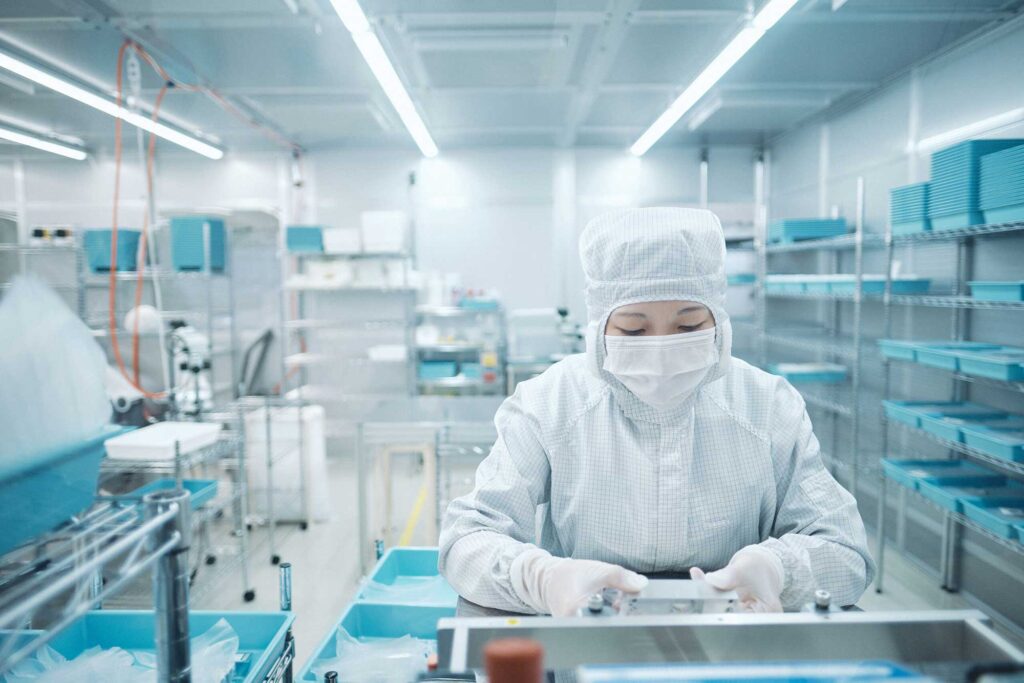

Clean booth / Clean room

We can build production lines within clean environments, offering semi-automatic welding lines, leak testing, inspection, and packaging tailored to customer requirements.

Clean booth/Class 10,000 of cleanliness

Clean room/Class 1,000 of cleanliness

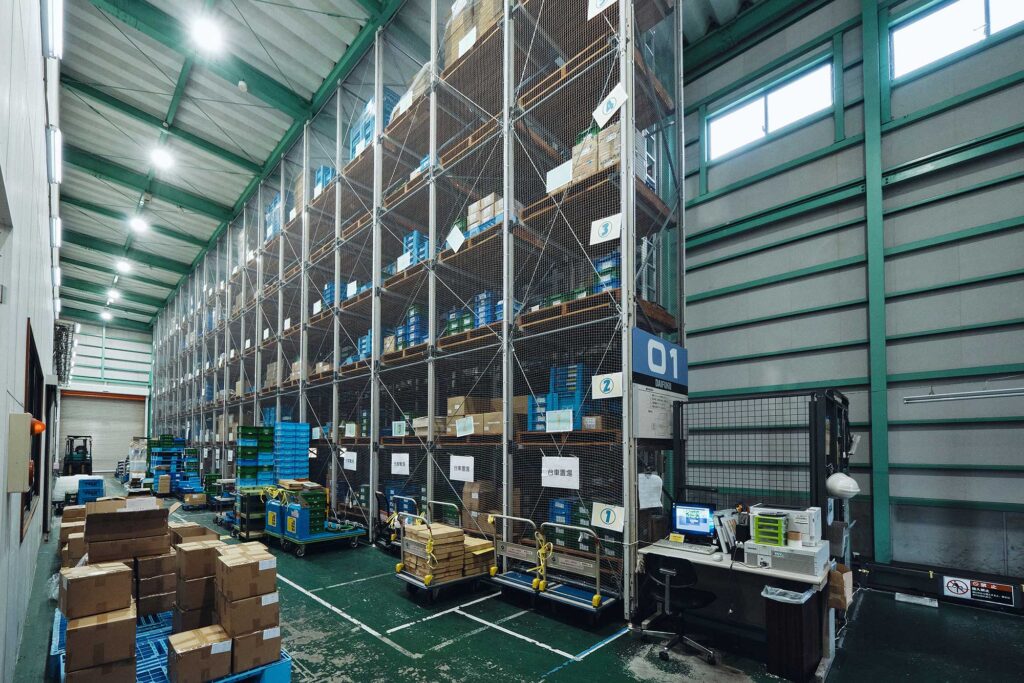

Procurement Network

We have established a global supply chain primarily across East and Southeast Asia. From general steels to difficult-to-machine special materials, castings, lost-wax parts, die-cast parts, and assembled units—we can meet a wide range of procurement needs. Serving as your procurement partner, we deliver a stable supply at low cost.
